Use cases
- Live results on the web
- Live results in the arena
- Safety monitoring
- Get timing records from the athlete (SIAC or BSF8-SRR) within a few seconds
SPORTident LTE Modem
The SPORTident LTE Modem is the latest innovation in SPORTident technology. Within seconds, it reliably transmits participant data directly from the racecourse to the competition arena, enabling real-time live results. It is extremely easy to use and works in any condition.
Advantages and key features
Easy
- Switch it on, wait until it is online, done
- Includes SIM card and 5 years of data − no fussing with providers or data plans
- Works in 40+ countries
- Integrates with OE, SiTiming, SiReader. More integrations are coming
- LEDs to indicate online / offline, data transmission and battery charge
Robust
- Buffers and re-transmits data in the event of temporary network outages
- IP64 dust and water resistant
- Operating temperature from –20°C to +50°C
- Rechargeable battery for up to 35 hours of operation
- 2-year warranty (excluding battery)
And more...
- Optional companion mobile app for monitoring, configuration and firmware updates
- SPORTident Center for monitoring all your modems and live data
- API for timing records
-

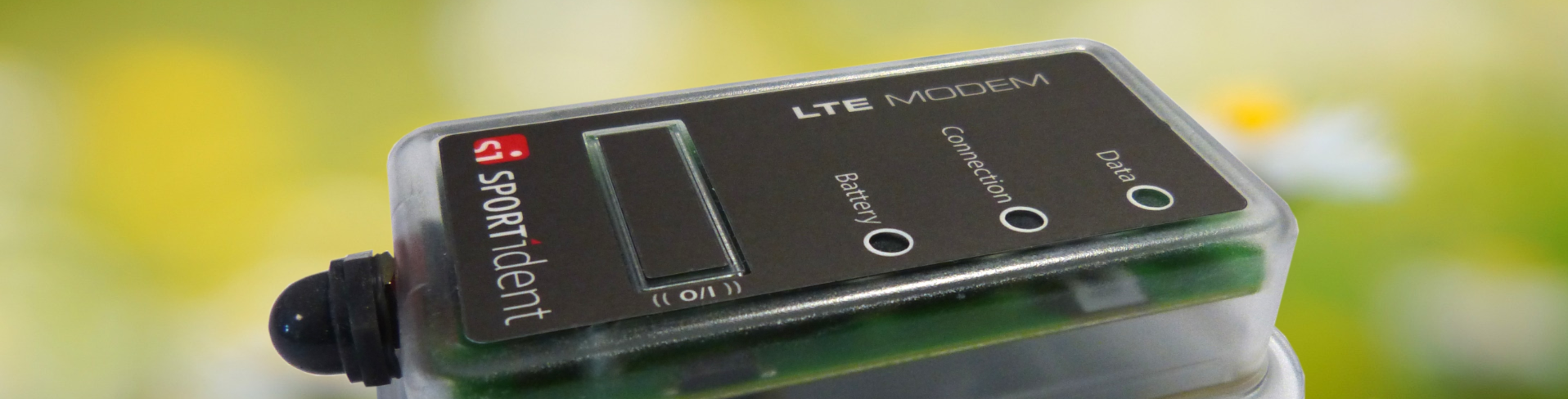

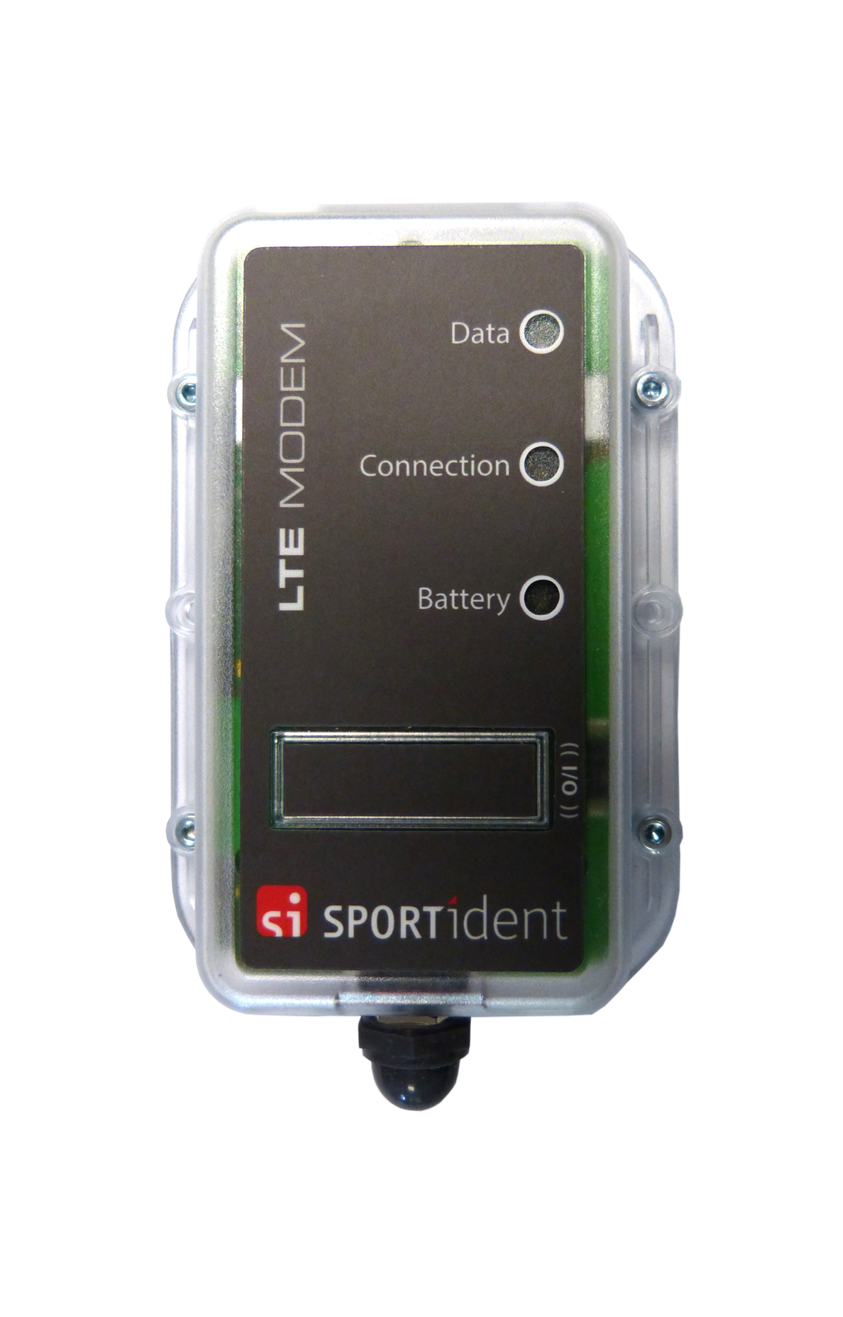

Top view
-
Left side
-

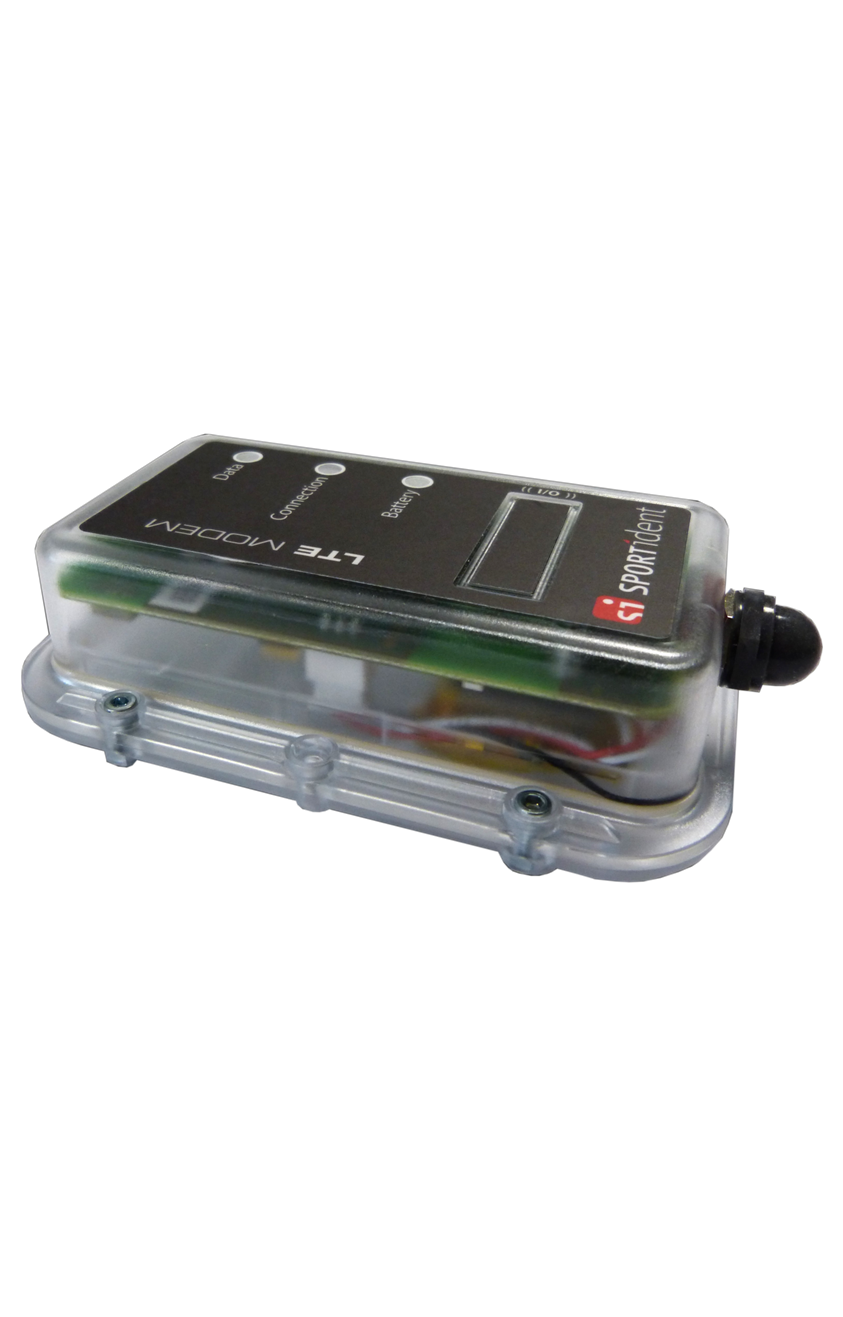

Right side
-

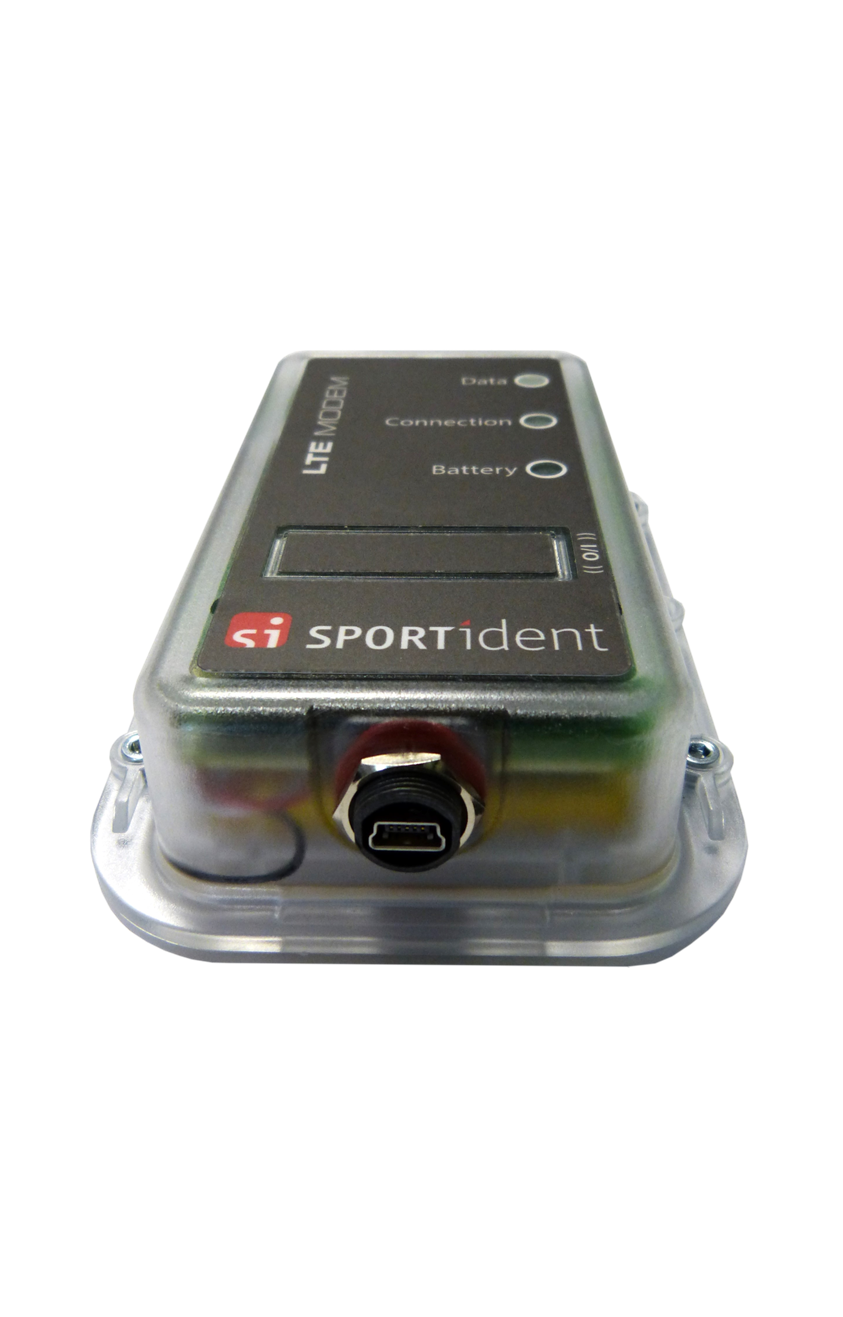

USB connection
-

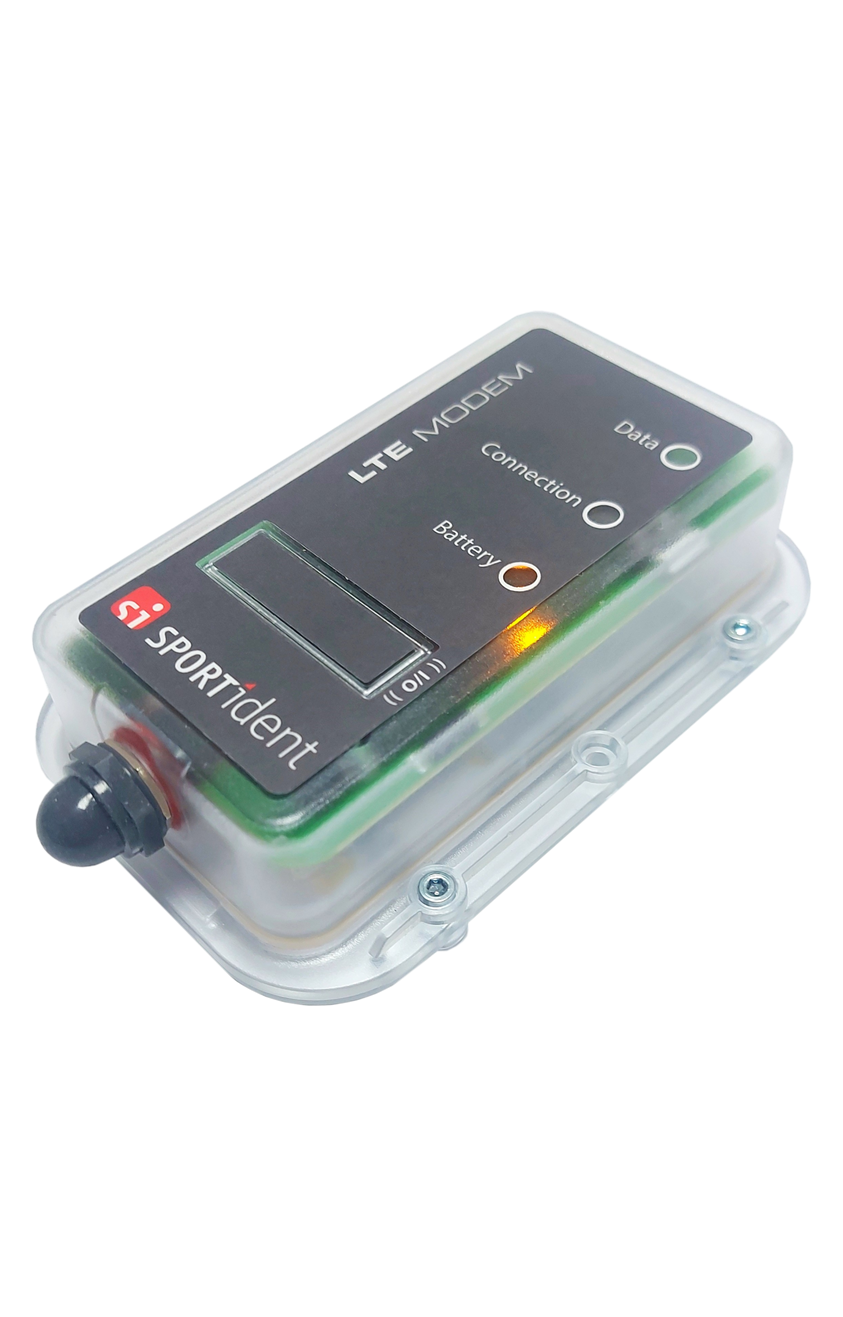

Flashing LED light
-

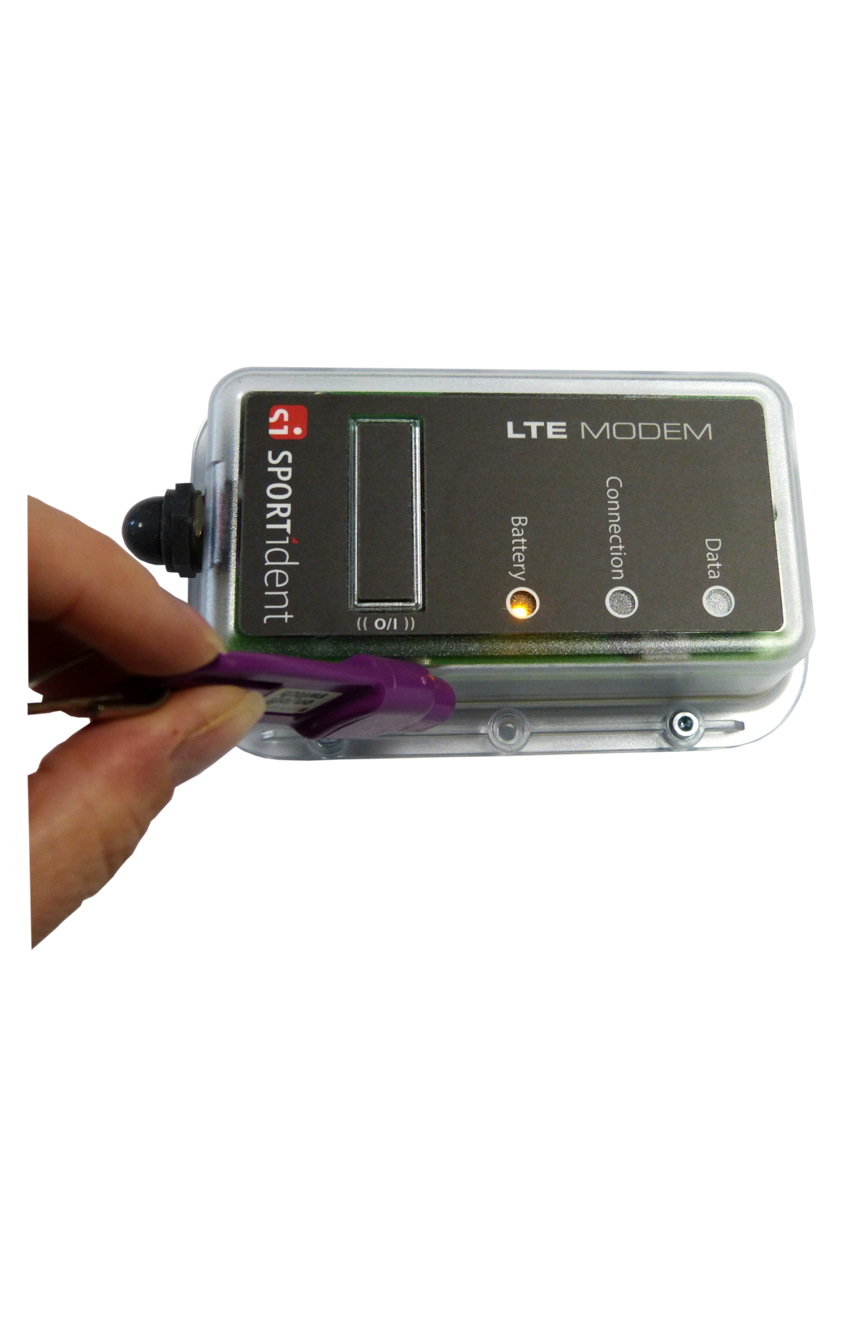

Switching on and off
Management

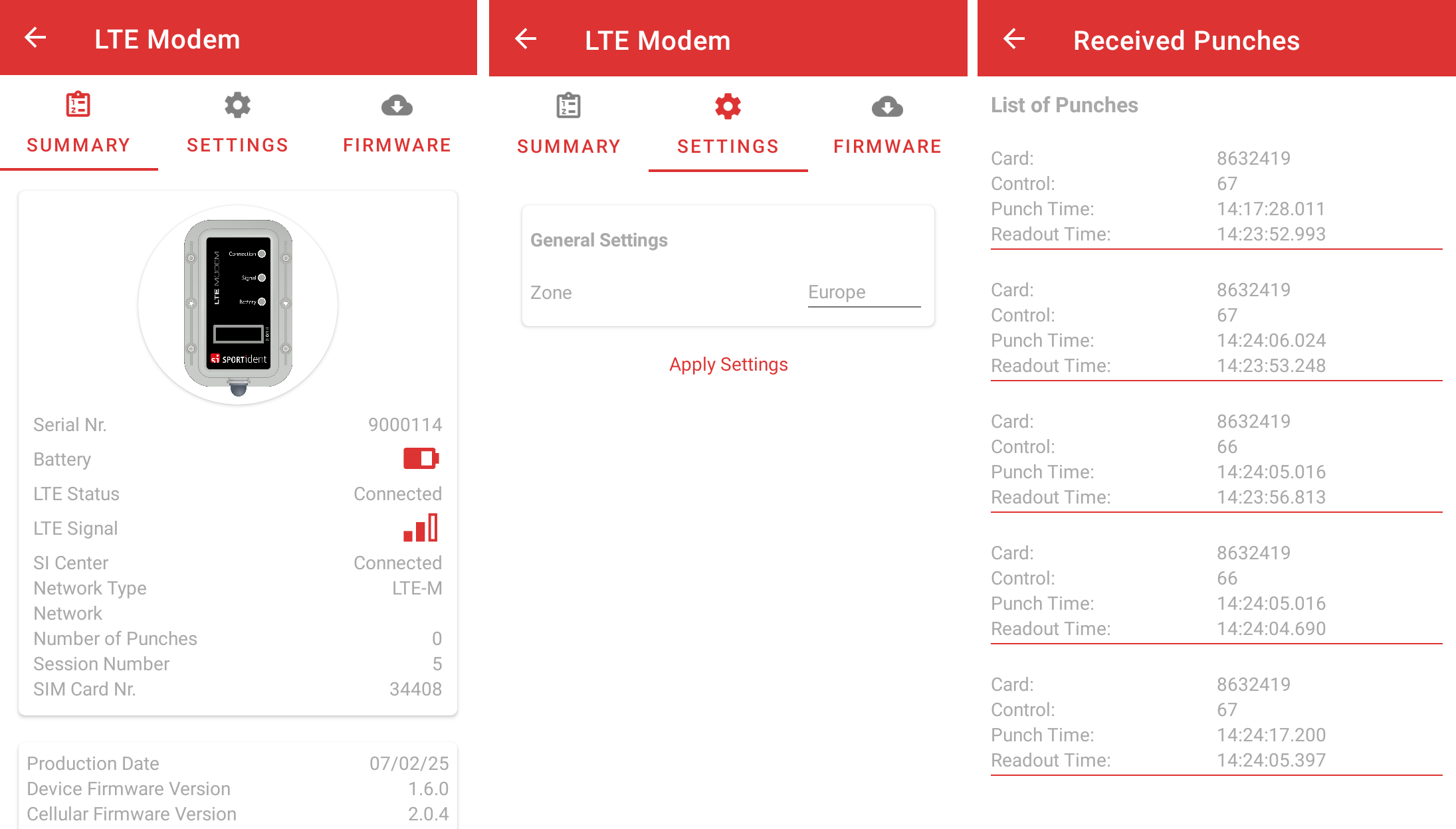

Config App
- Connect to the modem via Bluetooth Low Energy
- Monitor all details like online / offline, battery, signal strength, provider
- Change settings like the continent you are located in
- Monitor punches (timing records) in realtime
- Readout the backup memory from the modem
- Update the firmware
- Available on Google Play and the Apple App Store

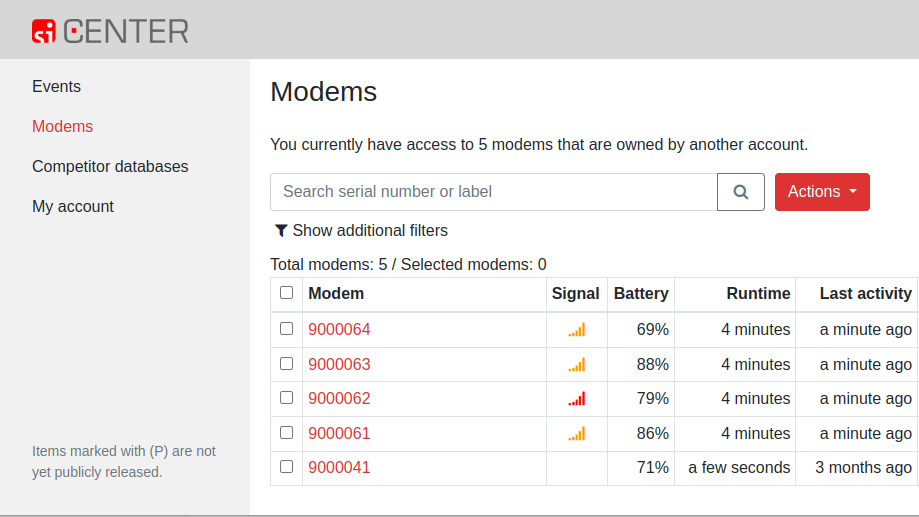

SPORTident Center
- Assign modems to events and users
- Monitor modems: online / offline, battery, signal strength, provider, and more
- Monitor data: See all punches (timing records) in realtime, export for further processing

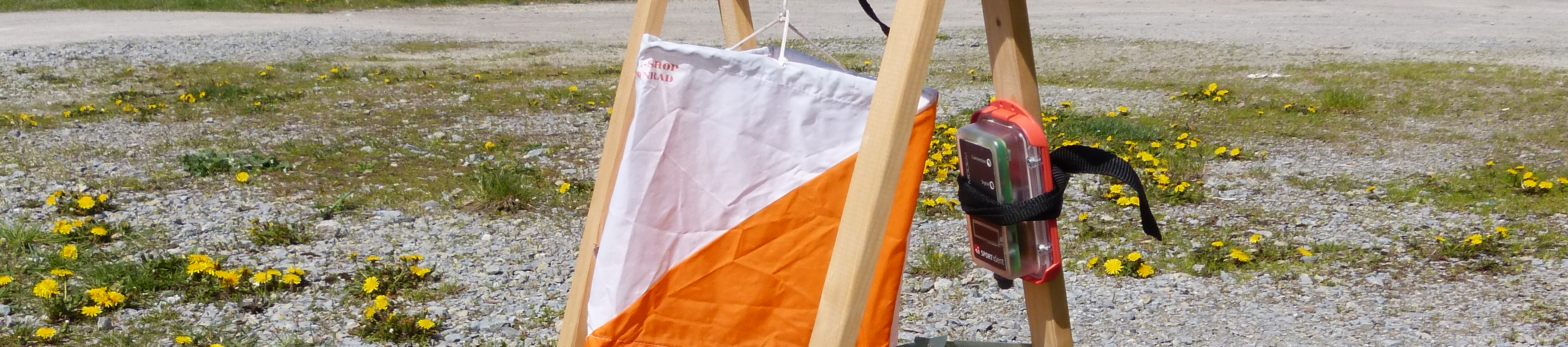

Mounting

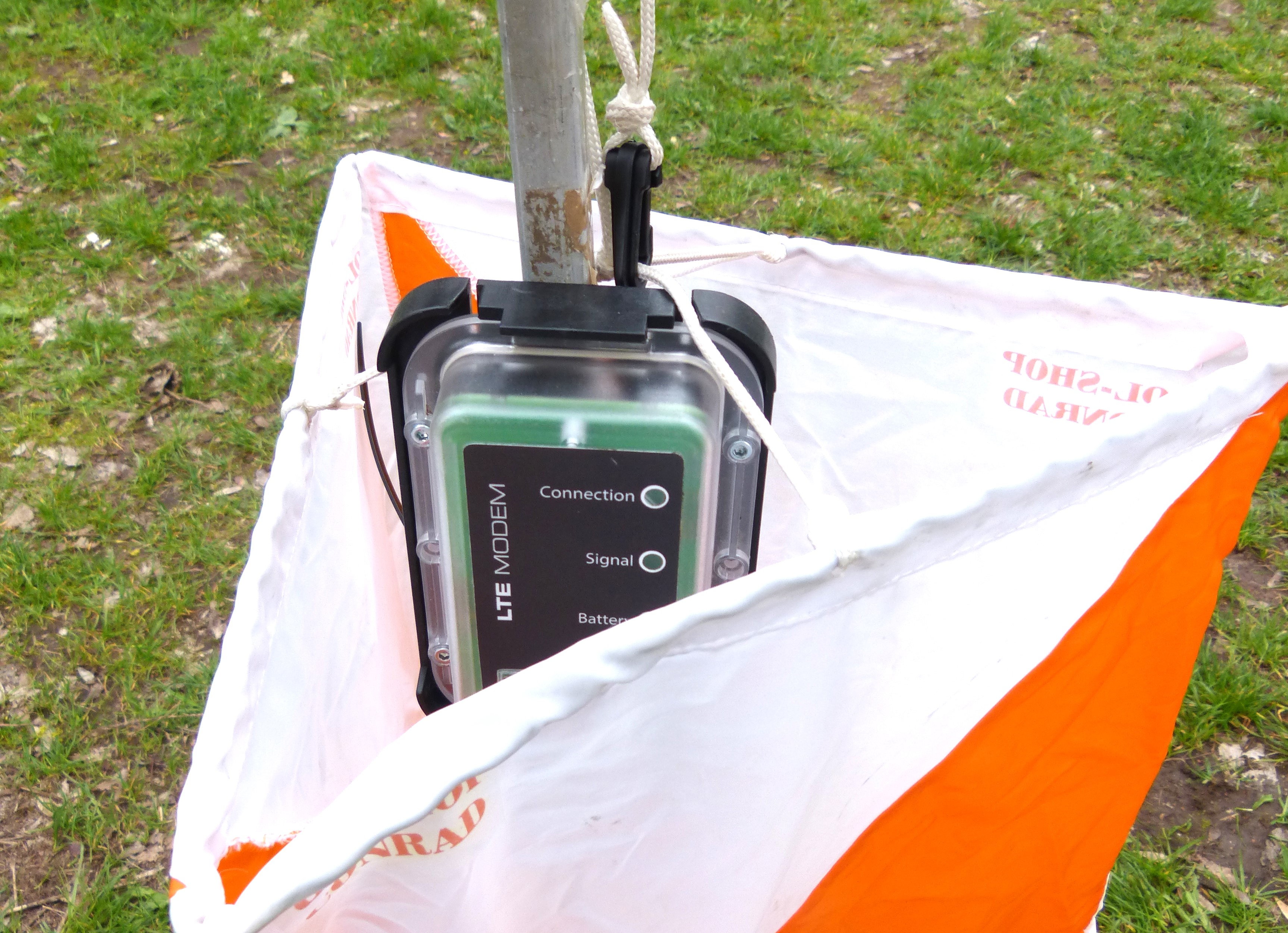

Basic position
The modem should be mounted vertically. The standard SPORTident mounting plate can be used.

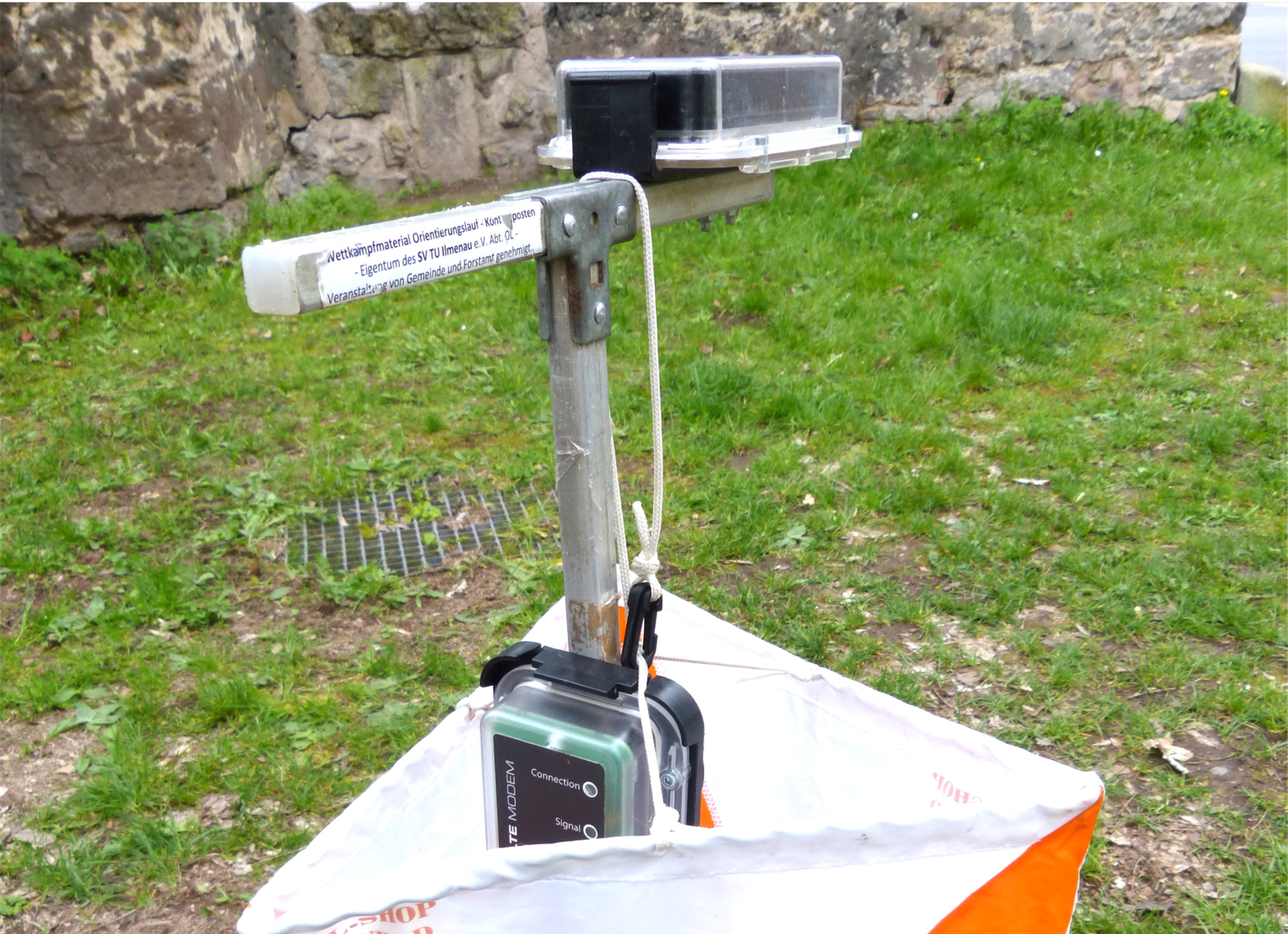

Positioning for running sports
The modem must be placed as closed as possible to the checkpoint.

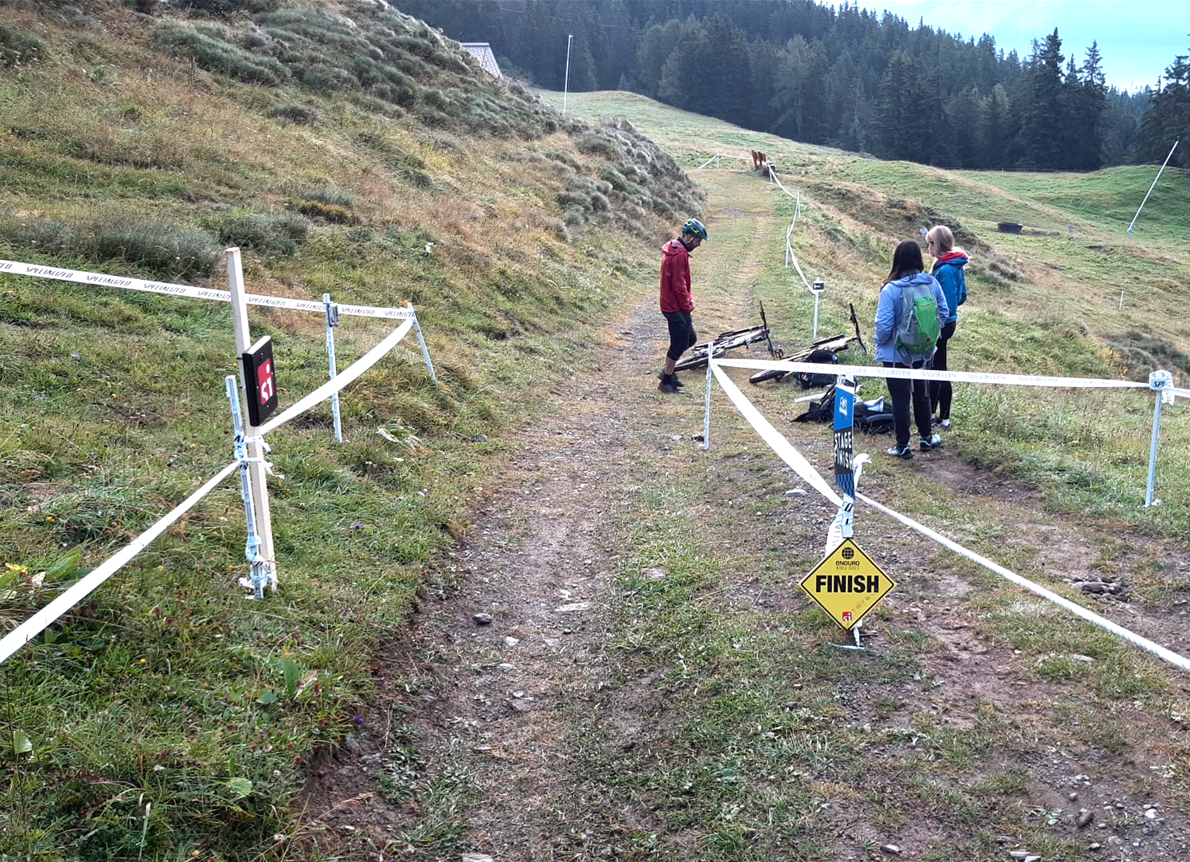

Positioning for fast sports
If passing a checkpoint at high speed and in a fixed direction, the modem should be placed approximately 6 metres behind the checkpoint – for example, in an MTB competition.
Pricing
LTE Modem
The LTE Modem comes with a USB charging cable as well as a SIM card and 5 years of data usage.
The 5 years start counting after activating the modem for the first time.
420 € *
5-year data package
After the included first 5 years of SIM card and data usage, a new data package can be purchased for additional 5 years.
120 € **
LTE Modem rental
If you only need the LTE Modem for one event or for a few months, you can also rent the modem from us.
Season rental (10 months)
180 € ***
Weekend rental
36 € ****
